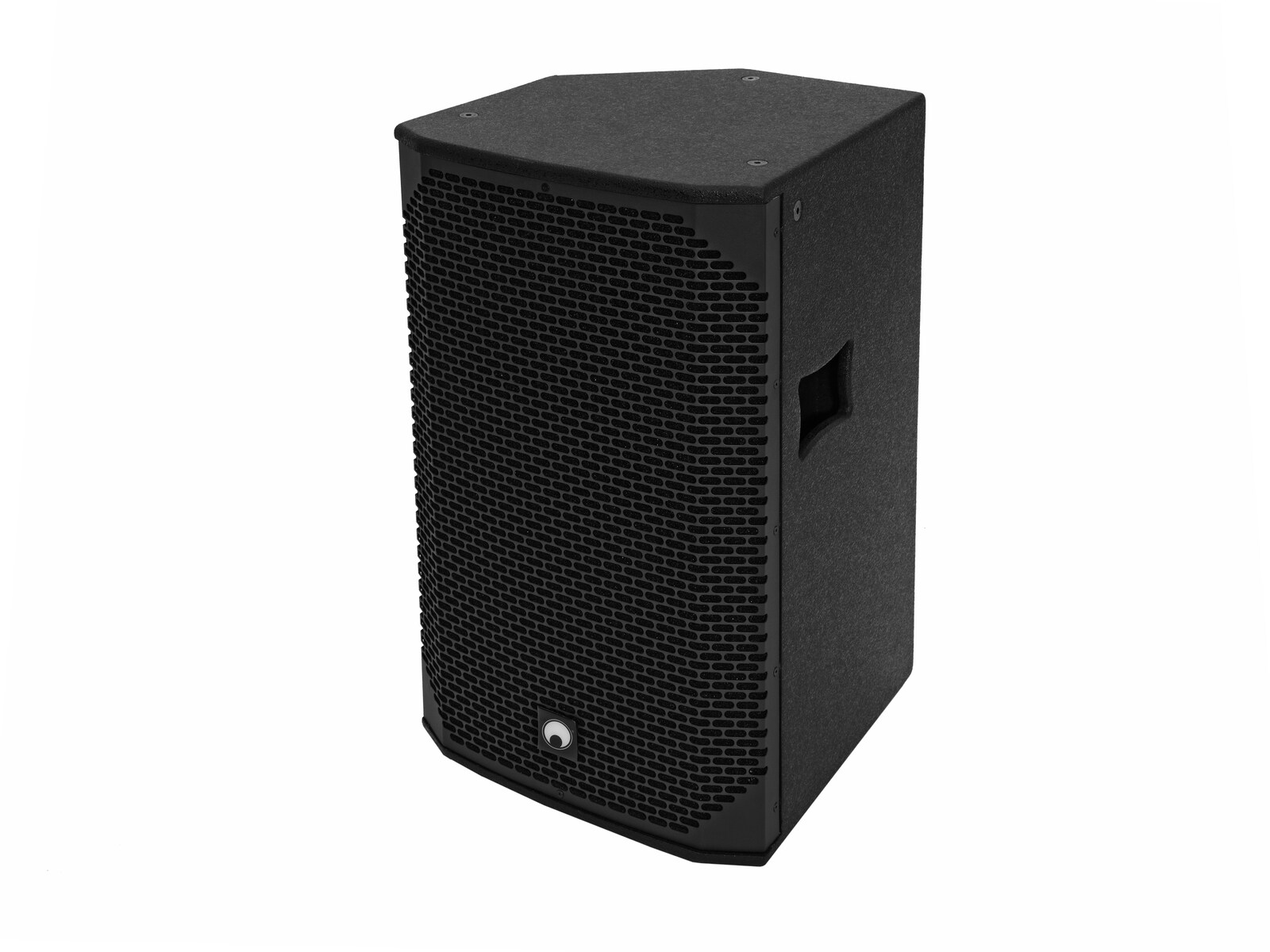

Active speaker with 15" woofer, 1.75" titanium driver, LF 300 W RMS, HF 50 W RMS

• 2-way bass-reflex enclosure with 38 cm woofer and 4.5 cm titanium driver
• Master control with 2-band EQ
• HF adjustment -4 dB, -2 dB, 0 dB

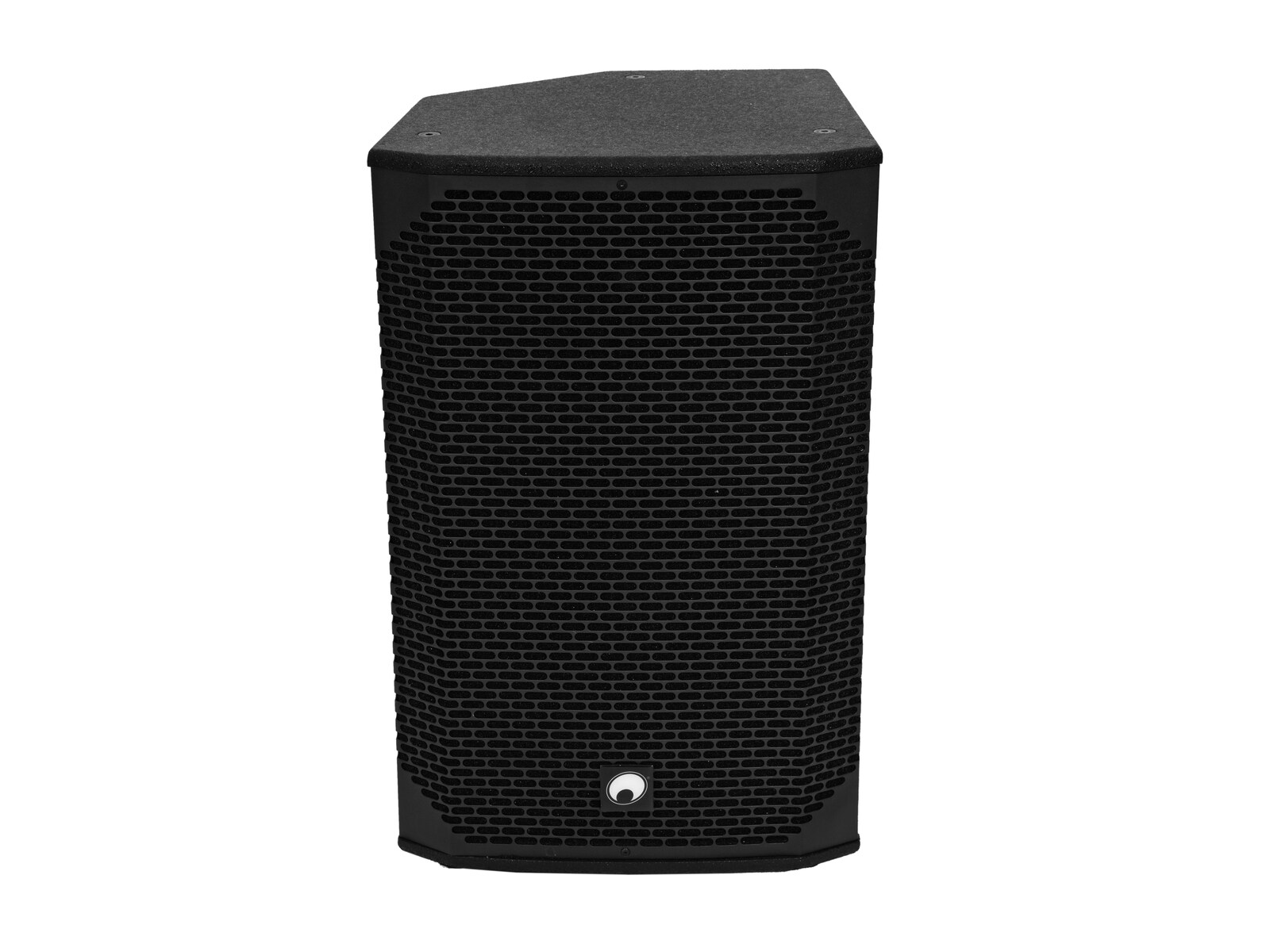

• Black metal grille with acoustic foam
• Rugged carrying handle
• With rigging points

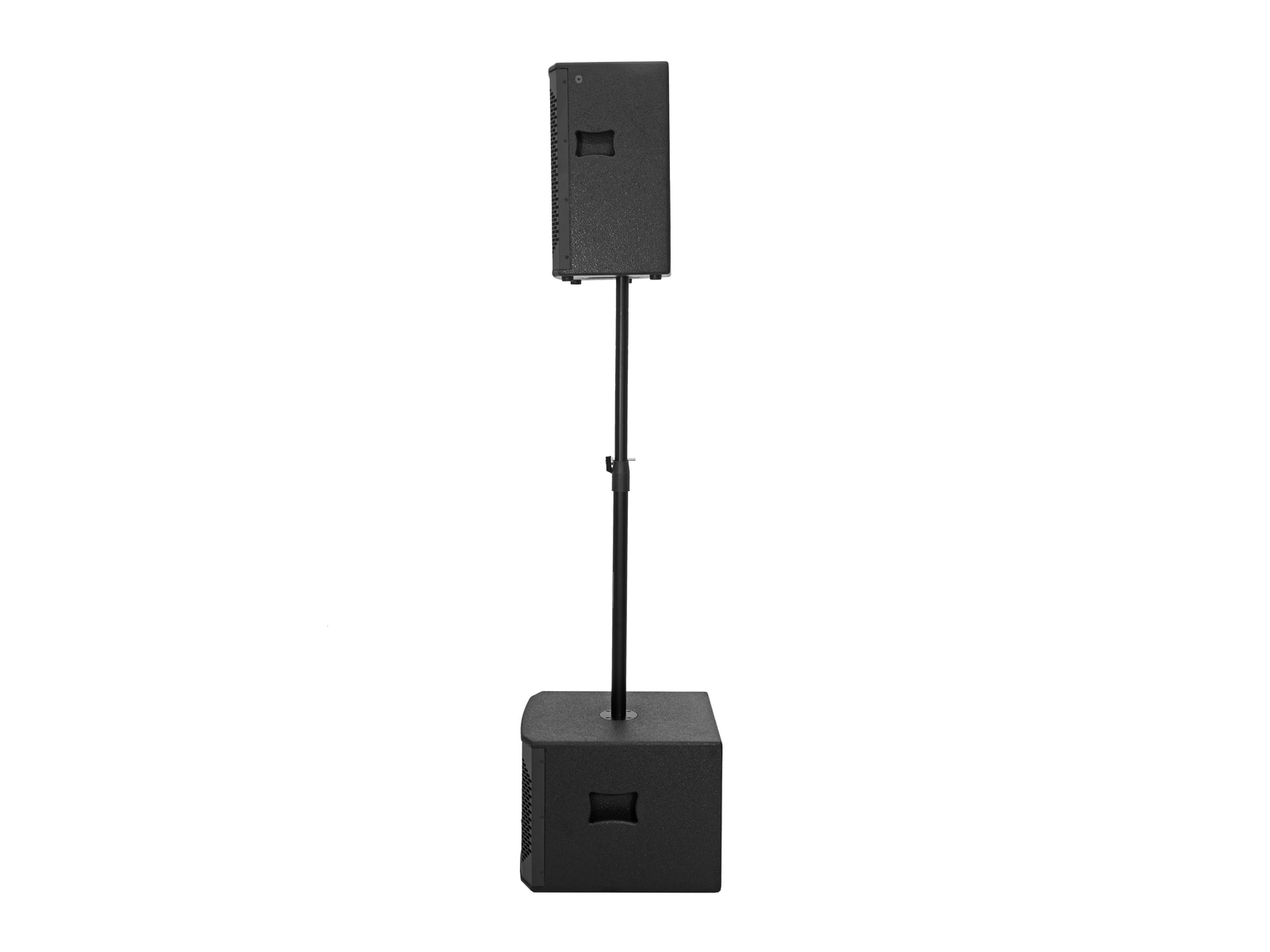

• Application possibility: Standing; suspended; monitoring; on tripod
• Dual flange

Package contents

• 1 x compact cabinet speaker, 1 x user manual, 1 x power cord

Power supply:
230 V AC, 50 Hz
Power consumption:
650 W
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power:
Rated: 300W RMS LF
Rated: 50W RMS HF
Frequency range:
50 - 20000 Hz
Sensitivity:
95 dB (1W/1m)
Attachment system:

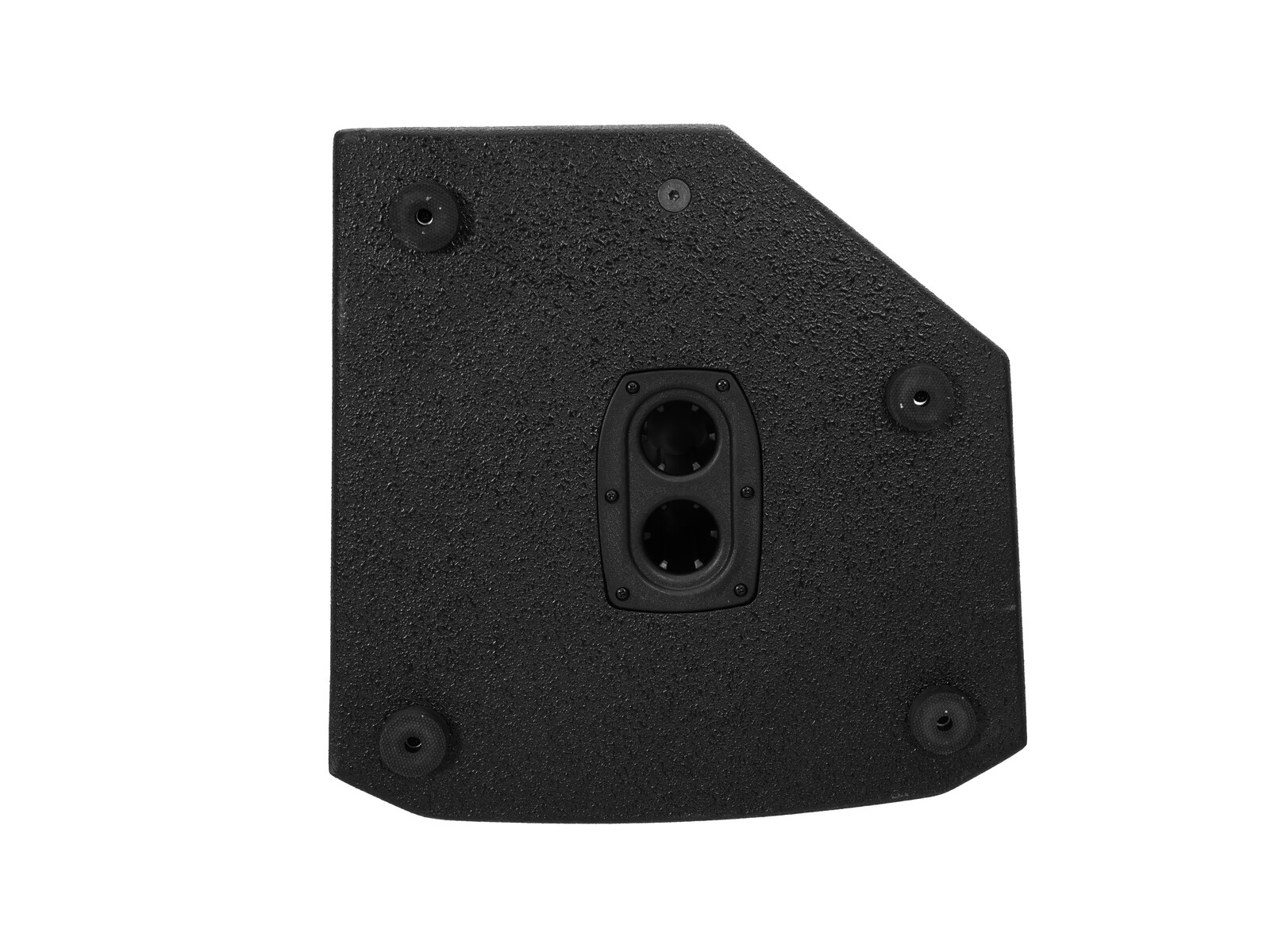

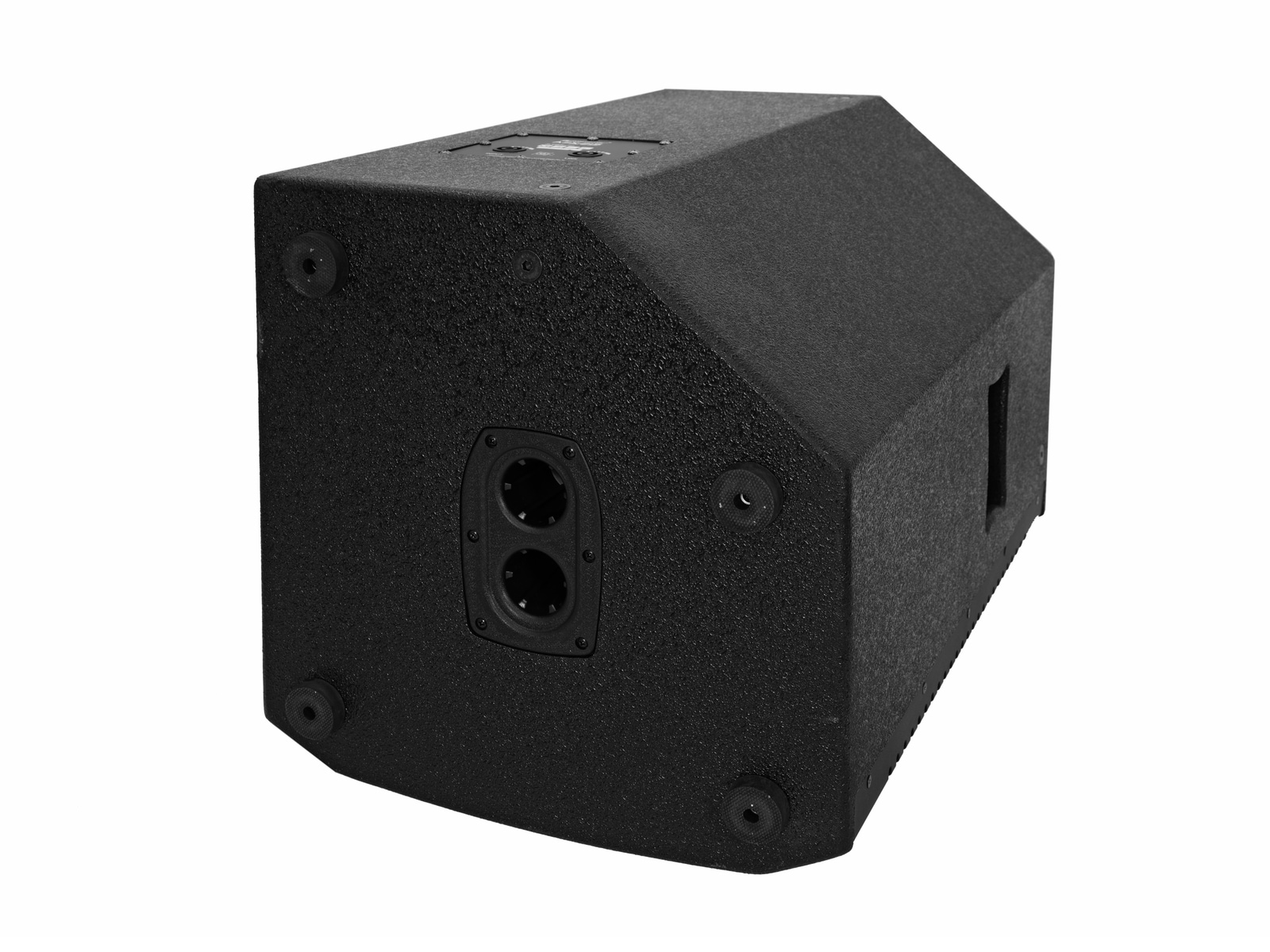

Dual flange: Ø 35mm (0°/5°)
Flying points:
7 x M10 thread
Circuitry:
Class D Biamp
Controls:
Limiter
Status LED:
Limit, power, signal

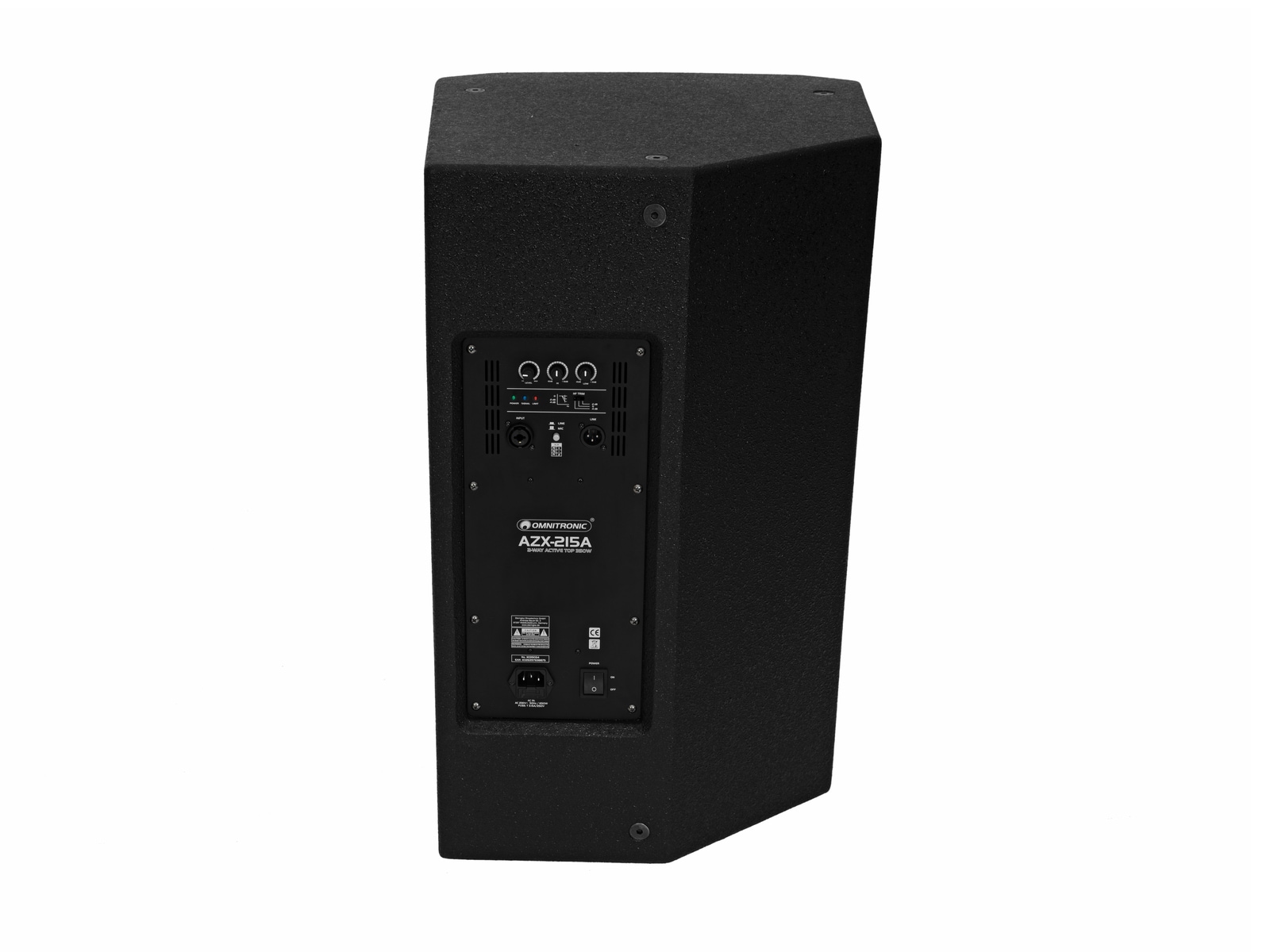

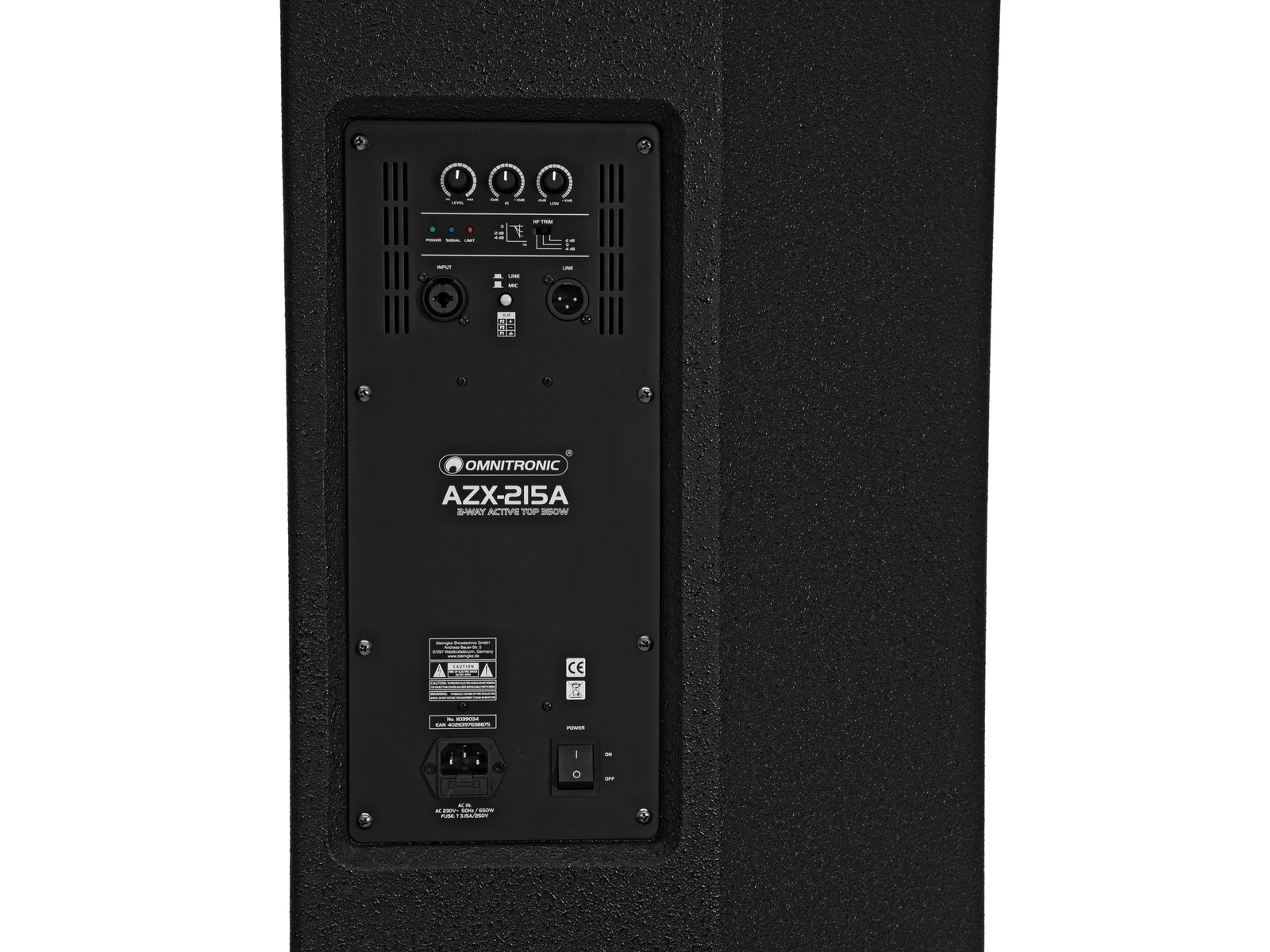

Connections:
Input: 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Output: line via 1 x 3-pin XLR
Input channels:
1 x mono with Mic-line switch via Combination socket (XLR/jack), channel control via Rotary dial
Equalizer:
Master: 1 x 2-band tone control

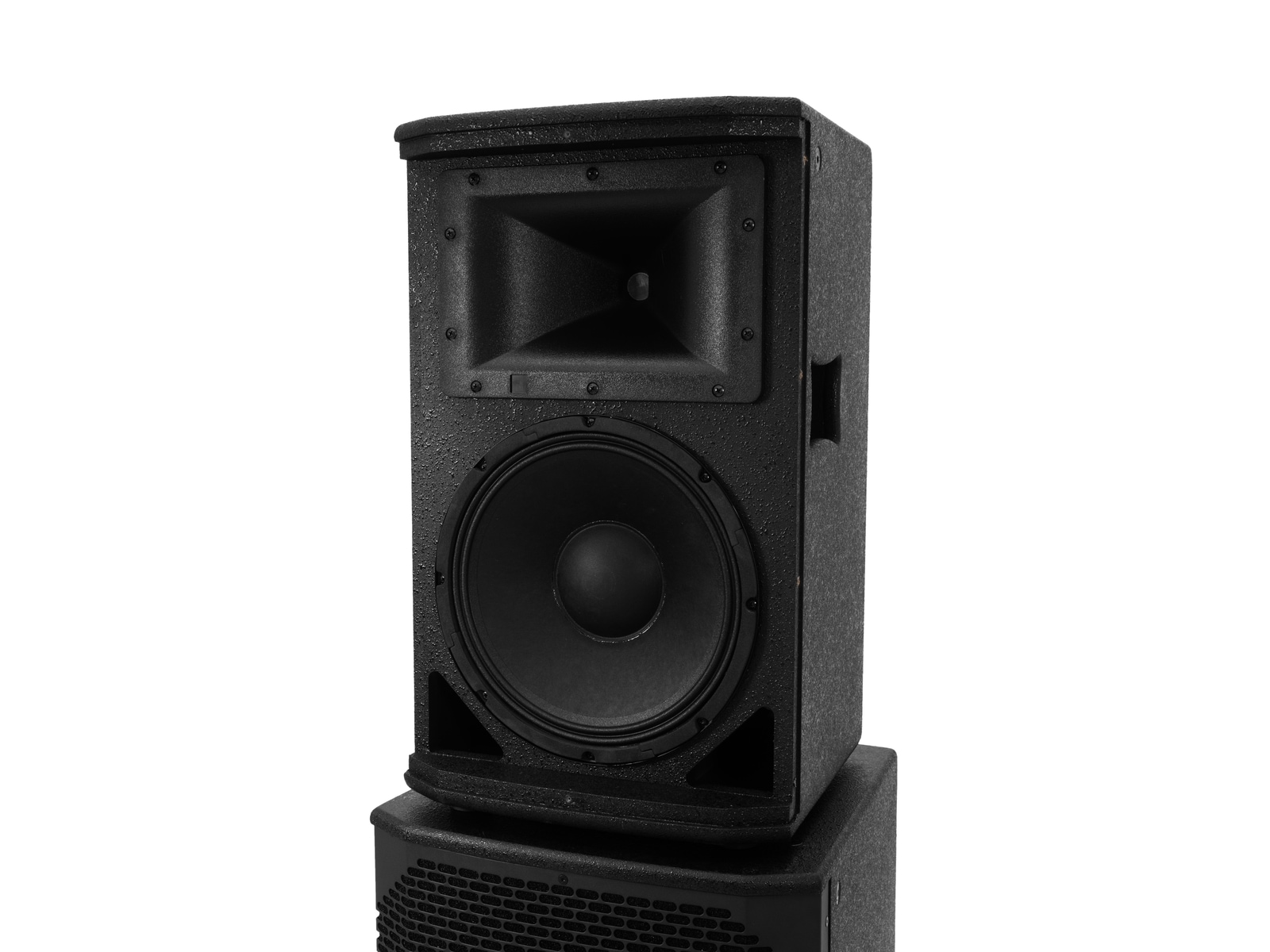

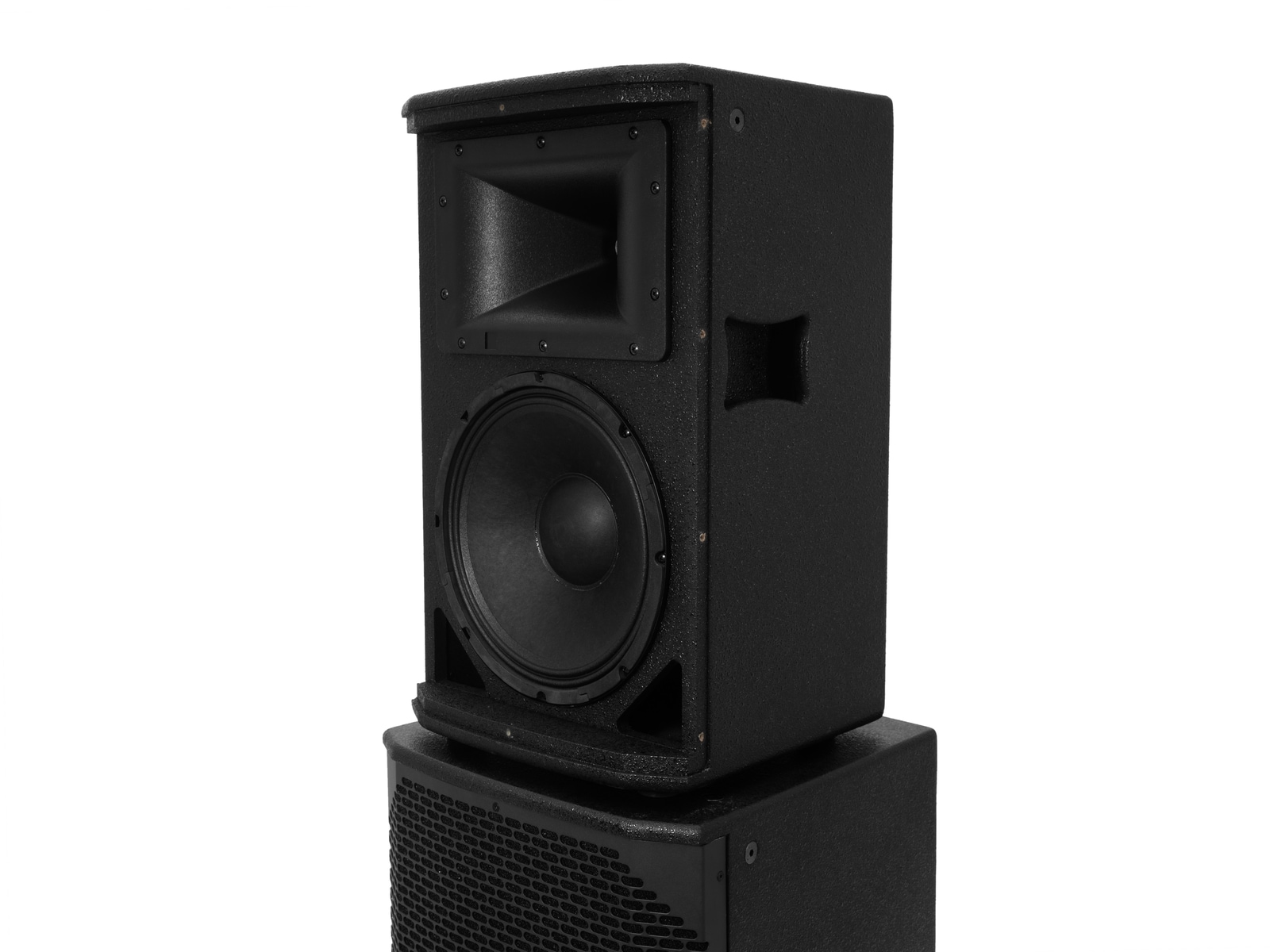

Speaker:
Woofer (15") approx. 38 cm with ferrit magnet
Voice coil lows (3") approx. 8 cm
Voice coil compression tweeter highs (1.75") approx. 4.5 cm
Type of speaker:
Compact cabinet speaker
Carrying handle:
1 pc/pcs
Material:
MDF (Medium-density fibreboard), 15 mm
Color:
Black, textured coating, painted
Dimensions:
Width: 48,5 cm
Depth: 48 cm
Height: 75 cm
Weight:
25,45 kg
