Patented mirror ball motor for mirror balls up to 150 cm
- The maximum load always means the mirror ball weight including chains and the fixation material

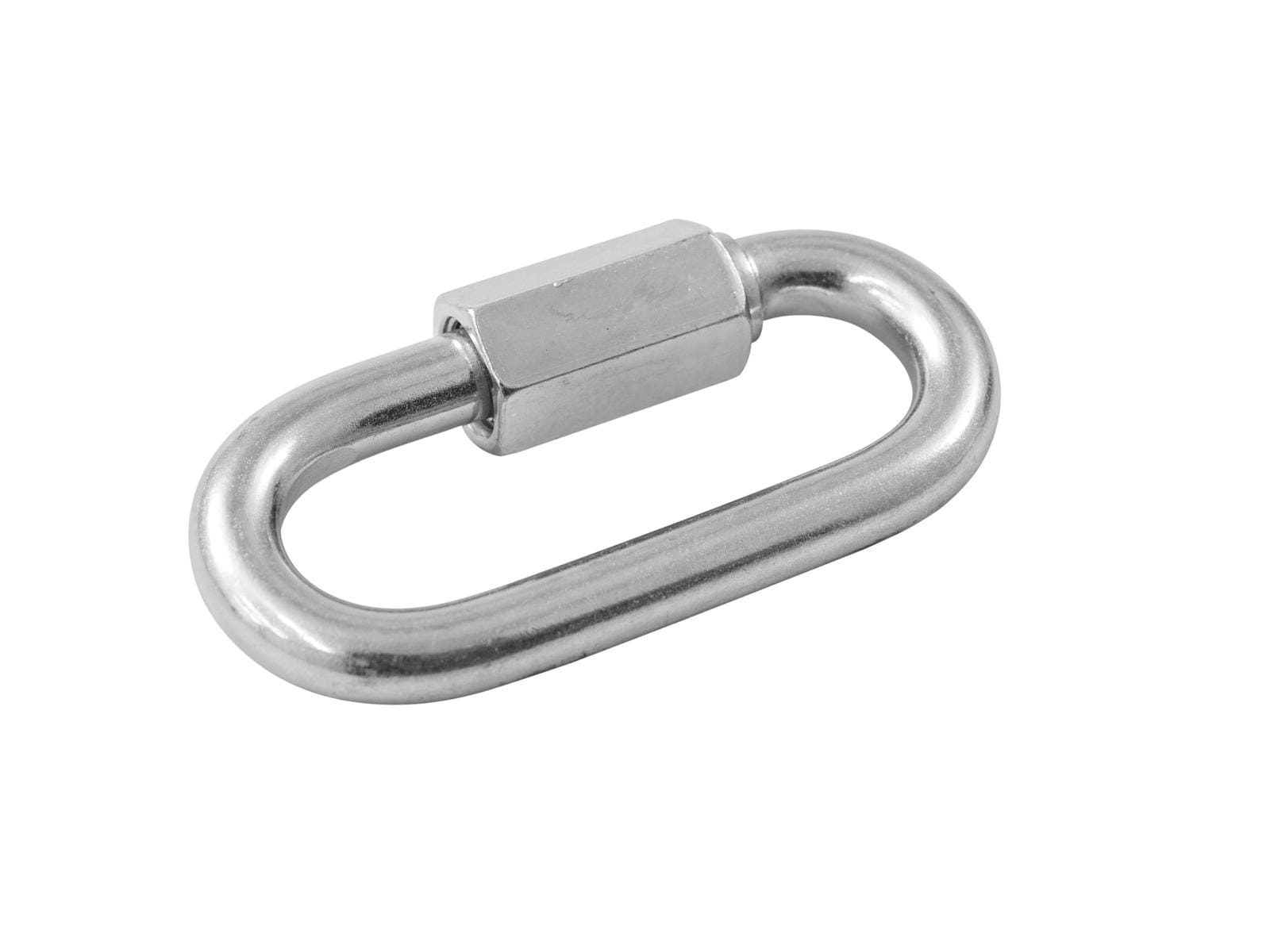

- 2 chains and 4 quick links must be ordered separately
- 1 rotation per minute
- The motor always has to be installed with a secondary safety attachment
- Before taking into operation for the first time, the installation has to be approved by an expert
- Suitable for a mirror ball with a diameter of up to 150 cm
- For application areas such as: Clubs/dancing school
Power supply:
230 V AC, 50 Hz
Power consumption:
7 W
IP classification:
IP20
Protection class:
Protection class I
Rotation:
1 RPM
Maximum load:
150 kg
Max. mirror ball diameter:
150 cm (EUROLITE)
Dimensions:
Width: 28 cm
Depth: 24 cm
Height: 11 cm
Weight:
5,40 kg
